Single Container Filler (Size 1) - TOP & BOTTOM FILL

(STANDARD OR ATEX)


SCF1: Single Container Filler size 1 (Up to 25ltr container)

Use: For filling a single container at a time, foaming and non-foaming. Can be used as a standalone unit, mobile or connected to conveyor systems.

Container Size: 5g to 25kg

Weight and Measures approved (weigh fill only)

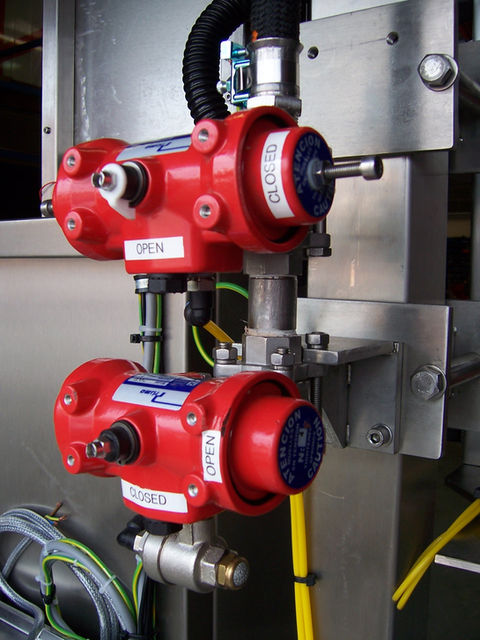

Operation: A single container is placed on the scale, on operating the Start Fill Push Button the scale automatically tares the weight of the container to zero. The lance and valves open and the system measure the weight of the product entering the container at about 90% of the fill weight the product flow rate is reduced to a fine feed producing a very accurate fill.

Specification:

  • Maximum height 450mm container

  • Standard use (none flammable)

  • ATEX Group II. Zone 1 Gas group IIG / Group III, Zone 21 Dust group IID

  • Hygienic

  • Bottom fill / Top fill / Above fill / Viscosity fill

  • Weigh or Flow Meter filling

  • One or Multi filling lines



For filling various products using our range of filling nozzles.



Bottom Fill: For foaming product, nozzle remains immersed in product while filling (lifts will level of liquid).



Top Fill: For non - foaming products, nozzle tip enters top of containers while filling.



Above Fill: For viscous products, nozzle remains above the container during the fill.

Extras:

CIP (Clean in place): System automatically move the filling lance to a CIP adaptor (tube connected to recycle or drain) lowers into place then opens to allow cleaning medium to flush the system)

Data collection: Information from the weigh indicator can be sent to a PC via RS 232 connection, it will provide details such as product selected on indicator, date, time, target fill weight and actual fill weights. This is stored on a hard or PC spreadsheet.
